Turn Heads with Spectacular Thermometer Movements

Thermometer movements are an interested crossbreed of electric motors that turn hands according to an obtained time and weather-based worths that are input from sensors. Therefore, thermometer activities turn a solitary hand to a factor within a minimal variety that represents a number (a temperature level) signified by the sensing unit. There are a number of selections of this arrangement, as well as we explore them in this short article.

Advertisement

Using clock movements for thermometer functions is an idea that could make one scratch her head. After all, for centuries people have actually gotten made use of to reading the position of a revolving hand to inform time. However with a little penetrating under the surface impression one sees the logic of this technique.

A thermometer is basically a tool that gauges the degree of warm, or temperature, of something. That something might be a pot of water on the oven, the body of a sick person, a distant holy celebrity, or the ambient atmosphere. The nature of the thing measured determines the very best thermal technology to use.

Early thermometers used a fluid (or gas) had in a closed glass tube to show the level of ambient warmth. For this to work the material has to have a high coefficient of growth and also continue to be in its state over a wide range. Examples include mercury, ethanol, and also brandy or some comparable alcohol-water mix.

Blackbody radiation is the modern technology to make use of if the object is remote, such as a celebrity. The principle here is that the spectrum of the compound is proportional to its temperature.

Advertisement

A lot more current innovations entail making use of steels. A thermistor uses the concept of a particular metal’s resistance being considerably minimized when it is heated up. This is a prominent method to develop thermostats today.

Bi-metallic innovation is a mechanical technique based upon different coefficients of development for 2 various steels. A coil or spring is formed from a blend of both compounds, as well as the quantity of tension (or degree of coil) varies with the ambient temperature.

Advertisement

It’s this last technology that makes the most sense for coupling with an electric motor for rotating hands. Firstly, a battery isn’t required because the bi-metallic system is strictly mechanical. Second, it is well understood, accurate, as well as trusted, not conveniently impacted by outdoors impacts.

These qualities make it possible for one to arrangement the tool in a certain area and after that forget about it. It doesn’t call for calibration neither is it required to make periodic changes.

Advertisement

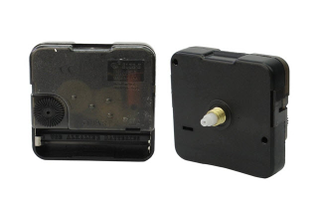

Therefore, a clock parts distributor doesn’t have to go with an extensive retooling to generate a thermostat motion. He can most likely make use of or retrofit an existing hand design as well as the externals of an existing motion. However, the dial needs to be designed from square one.

The internals of the activity additionally need to alter. Instead of a quartz crystal generating pulses that obtain accumulated right into a digital counter, a bi-metallic system has to be combined to the hand potter’s wheel. This requires a proper scaling to ensure that the range of the temperature levels scanned maps onto a bit less than a complete area of the dial.

Advertisement

The nice thing is that one activity can accommodate more than one dial size. The range mapping is independent of dial size, so all one needs to bother with is whether the longer hand is much heavier enough to call for more torque than the motor can provide.

Made with some care, the result can be rather spectacular. All you have to do is pick the dimension of dial and hand, order them from the provider along with the corresponding motor, set up the parts in a matter of mins, and you’ll have something rather eye-catching that tells the temperature level all the time. You will uncover that a lot of heads will certainly transform when they get a glimpse of your thermometer movements. best hands for clocks
